Description :

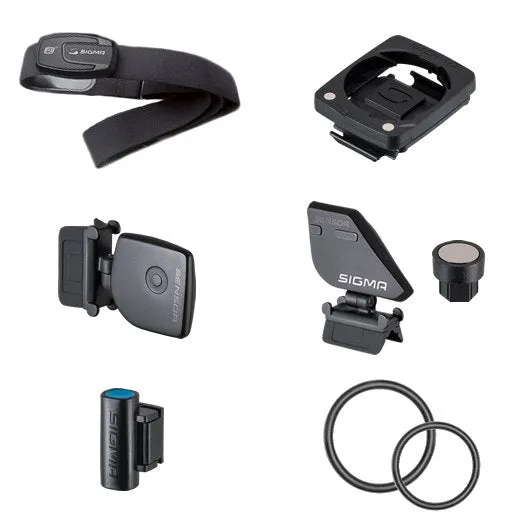

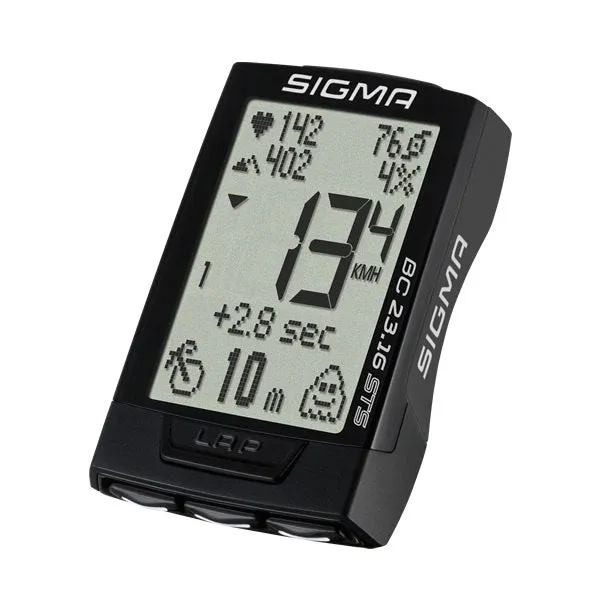

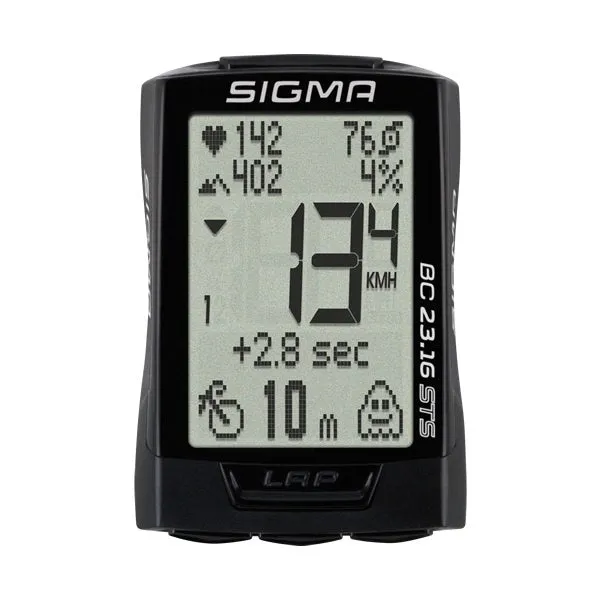

The BC 23.16 STS is the most sporty model. In addition to all important bike, altitude and heart rate functions, it also displays the cadence. All sensors are included in the scope of delivery. The highlight is without a doubt the enormous log capacity of up to 500 hours. A data set can be selected from the stored data log via the Data Center and used as a virtual opponent for a ghost race.
Specifications :
- Speed : yes
- Heart Rate : yes
- Cadence : yes
- Altimeter : yes
- Data Transfer (Sensors) : STS digital coded 3-channel wireless transfer
- Data Transfer (Smartphone & PC) : LINK APP connected via NFC (Android)
Technical Information :
- Size : 66.5 mm x 44 mm x 12.5 mm
- Display Size : 30 mm x 45 mm
- Colour Display : no
- Touchsceen : no
- Power Supply : Lithium battery, CR 2450
- Wterproof : yes, via IPX 8
Features:
- Full text display in 7 languages
- Automatic start / stop
- Back-up function using a memory chip
- Wheel size is adjustable through the tyre type
- Automatic detection of the 2nd bike

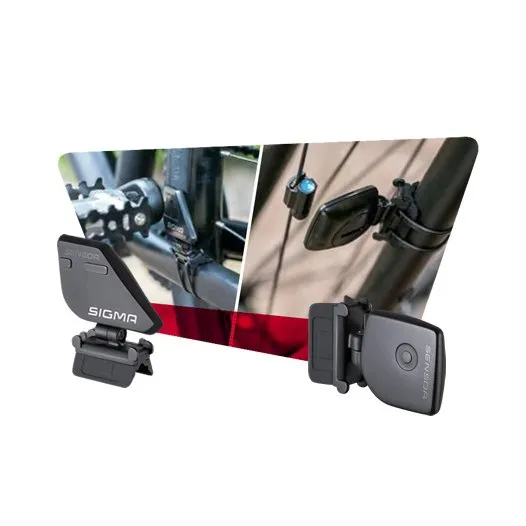

- Detailed data evaluation by the included sensors
- Logs up to 500 hours in 5-10-20 sec intervals
- Lap counter of up to 99 laps / Lap View (detailed lap analysis)
- 2 wheel sizes can be calibrated
- An integrated memory chip
- Battery status display (receiver sensors)
- Travel time of up to 100 h: tours can be recorded and stored with a travel time of up to 100 hours
- Bicycle inspection reminder function: the service interval, which can be switched on/off or preset by the dealer, reminds you to inspect your bicycle after a mileage of your choice
- Animated menu guidance
- Backlight

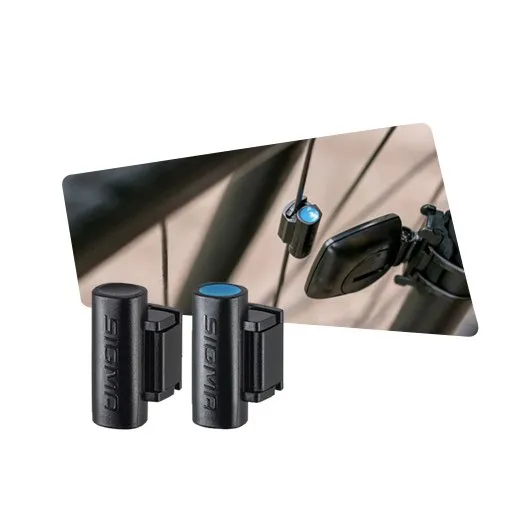

- Click magnet: easy assembly/disassembly through a click mechanism
- Training statistics for a 12 month time period
- Zoom function for the display
- Training zones can be selected
- PC/Mac Ready
- D- data communication via a docking station
- UFSB-compatible
- Service intervals can be adjusted via UFSB
- Starting altitude can be selected
Functions
Bike functions
- Average cadence
- Average speed
- Avg power watts (calculated)
- Cadence
- Calories²
- Clock (12/24h)
- Current speed
- Ghost race
- Maximum cadence
- Maximum speed
- Power watts (calculated)
- Ride time
- Temperature
- Total calories²
- Total distance
- Total ride time
- Trip distance
- Trip section timer
Altitude functions
- Altitude
- Altitude downhill
- Altitude graph
- Altitude uphill
- Current gradient
- Distance downhill
- Distance uphill
- Maximum altitude
- Total altitude downhill
- Total altitude uphill
- Total distance downhill
- Total distance uphill
Heart rate functions
- Average heart rate
- Calories (based on heart rate)
- Graph with 4 intensity zones
- Heart rate
- Heart rate (graph)
- Maximum heart rate
- Total calories
- Zone graph with heart rate as % of max heart rate
Lap functions
- Lap counter up to 50 laps
- Lap view
Logging functions
- Logging in 5 / 10 / 20-second intervals up to 500 hrs.
- Logging warning when less than 3 hrs of available logging remain
